Camera Balun

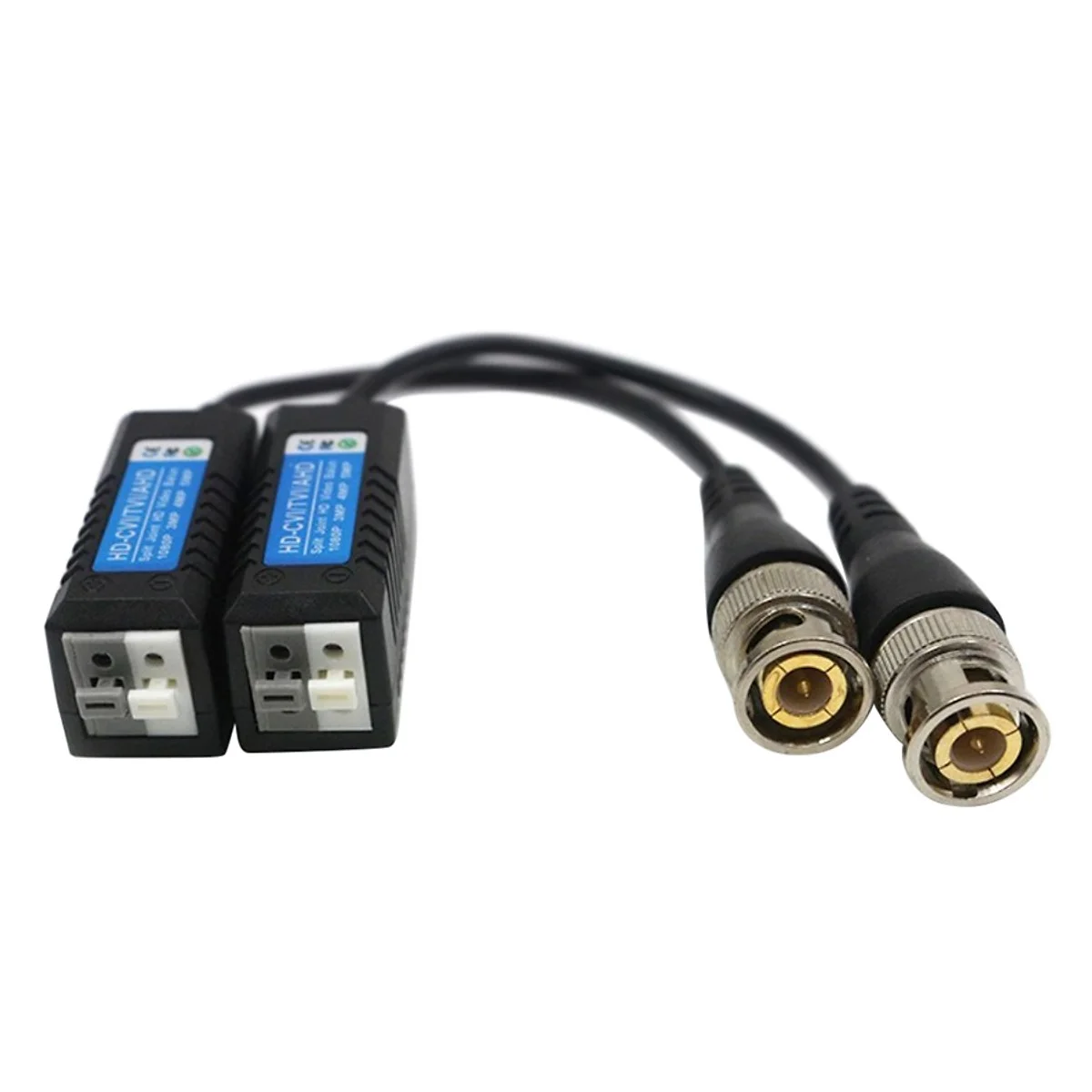

A camera balun is a device used in CCTV systems to transmit video signals from a security camera to a DVR, NVR, or monitor using twisted-pair cable such as Cat5 or Cat6. It converts the camera’s unbalanced video signal (via BNC/coax) into a balanced signal, allowing the video to travel longer distances with reduced signal loss and interference. A matching balun at the receiving end converts the signal back for clear video display.

Key points:

• Converts video signals between unbalanced (coax) and balanced (twisted-pair) formats

• Allows the use of Cat5/Cat6 cable instead of traditional coaxial cable

• Reduces installation cost and simplifies cable management

• Supports analog and HD-analog cameras (AHD, TVI, CVI)

• Available in passive (no power required) and active (powered, longer range) types

• Can transmit video over longer distances with less noise and interference

• Commonly used in homes, schools, offices, and commercial surveillance systems

Camera baluns provide a reliable and efficient solution for modern CCTV installations where flexible cabling and clear video transmission are essential.
